Kimball Data Architecture (Kimball Dimensional Architecture)

1. Overview

Kimball Data Architecture is a bottom-up data warehouse design approach focused on delivering business-friendly analytics. It organizes data using dimensional modeling, making it optimized for reporting, dashboards, and BI tools.

2. Core Principles

• Business-process centric
• Bottom-up development
• Dimensional modeling (facts and dimensions)
• Incremental delivery
• High query performance

3. Main Components

3.1 Source Systems

• Operational databases (ERP, CRM, billing)
• Logs and event streams
• APIs and flat files
• External data sources

3.2 ETL / ELT Layer

• Extract data from source systems
• Transform data using business rules
• Load data into dimensional tables
• Data quality checks
• Surrogate key generation
• Slowly Changing Dimensions (SCD)

3.3 Dimensional Data Warehouse

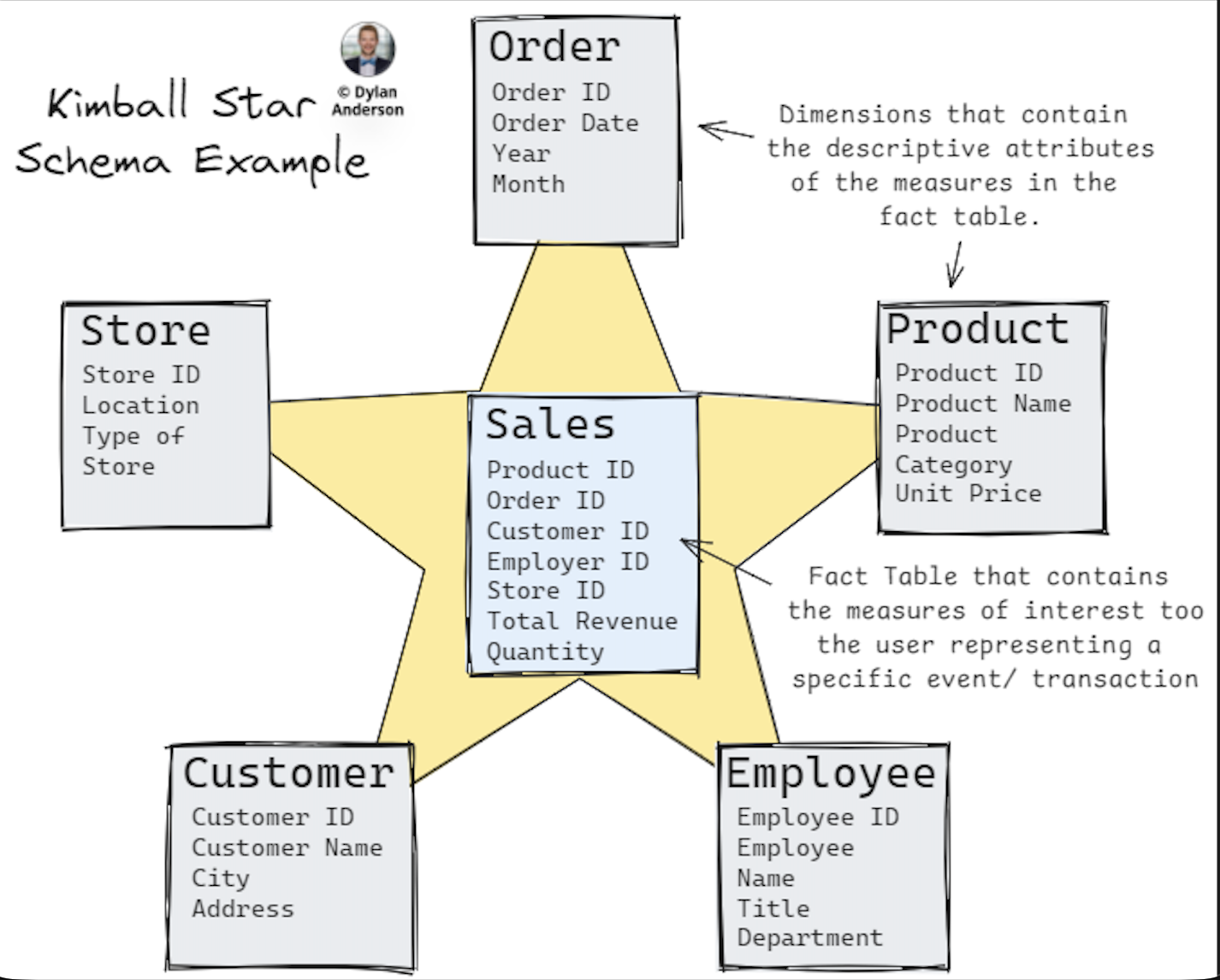

The core of Kimball architecture is the dimensional warehouse, built using star schemas.

4. Dimensional Modeling

4.1 Fact Tables

• Store measurable numeric data
• Represent a business process
• Defined at a specific grain
• Contain foreign keys to dimensions

• sales_amount
• quantity_sold
• revenue

4.2 Dimension Tables

• Store descriptive attributes
• Denormalized and human-readable
• Provide context for facts

• Customer
• Product
• Date
• Location

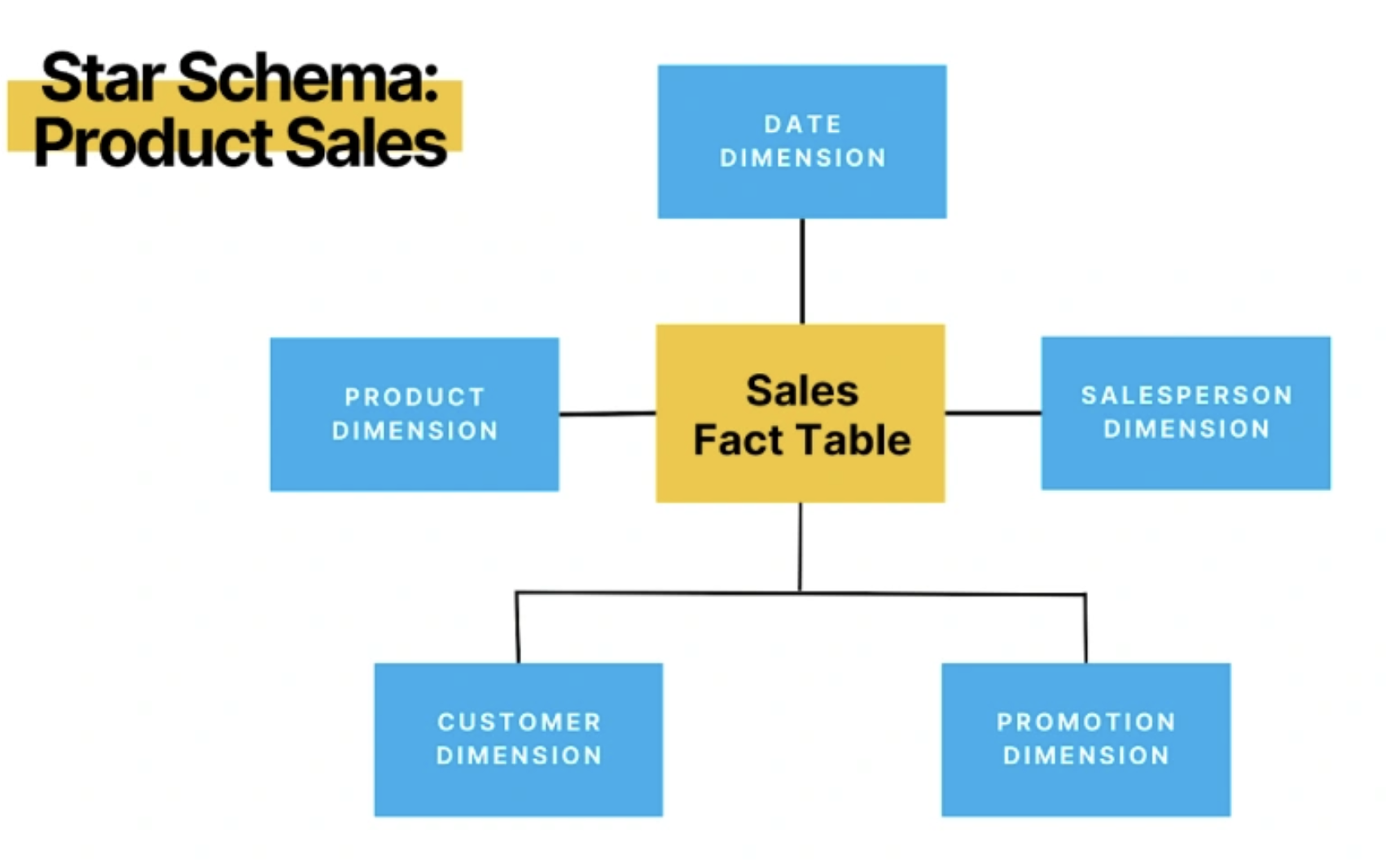

5. Star Schema

• One central fact table
• Multiple surrounding dimension tables
• Simple joins
• High-performance queries

6. Conformed Dimensions

• Shared dimensions used across multiple fact tables
• Ensure consistent metrics enterprise-wide
• Enable cross-functional reporting

• The same Date and Customer dimensions used by Sales, Inventory, and Finance

7. Data Marts

In Kimball architecture, data marts are not silos. They are logical subsets of the dimensional warehouse.

• Sales data mart
• Inventory data mart
• Finance data mart

8. Bus Architecture

• Defines standard business processes
• Maps processes to shared dimensions
• Ensures architectural consistency

9. Strengths

• Easy for business users to understand
• Excellent BI tool compatibility
• High performance on analytical workloads
• Incremental and agile development

10. Limitations

• Not designed for OLTP workloads
• Requires strong governance of dimensions
• Complex transformations live outside the model

11. One-Sentence Summary

Kimball Data Architecture organizes enterprise data into fact and dimension tables to deliver fast, consistent, and business-friendly analytics.
