Graph Databases — Advanced Technical Details and Usages

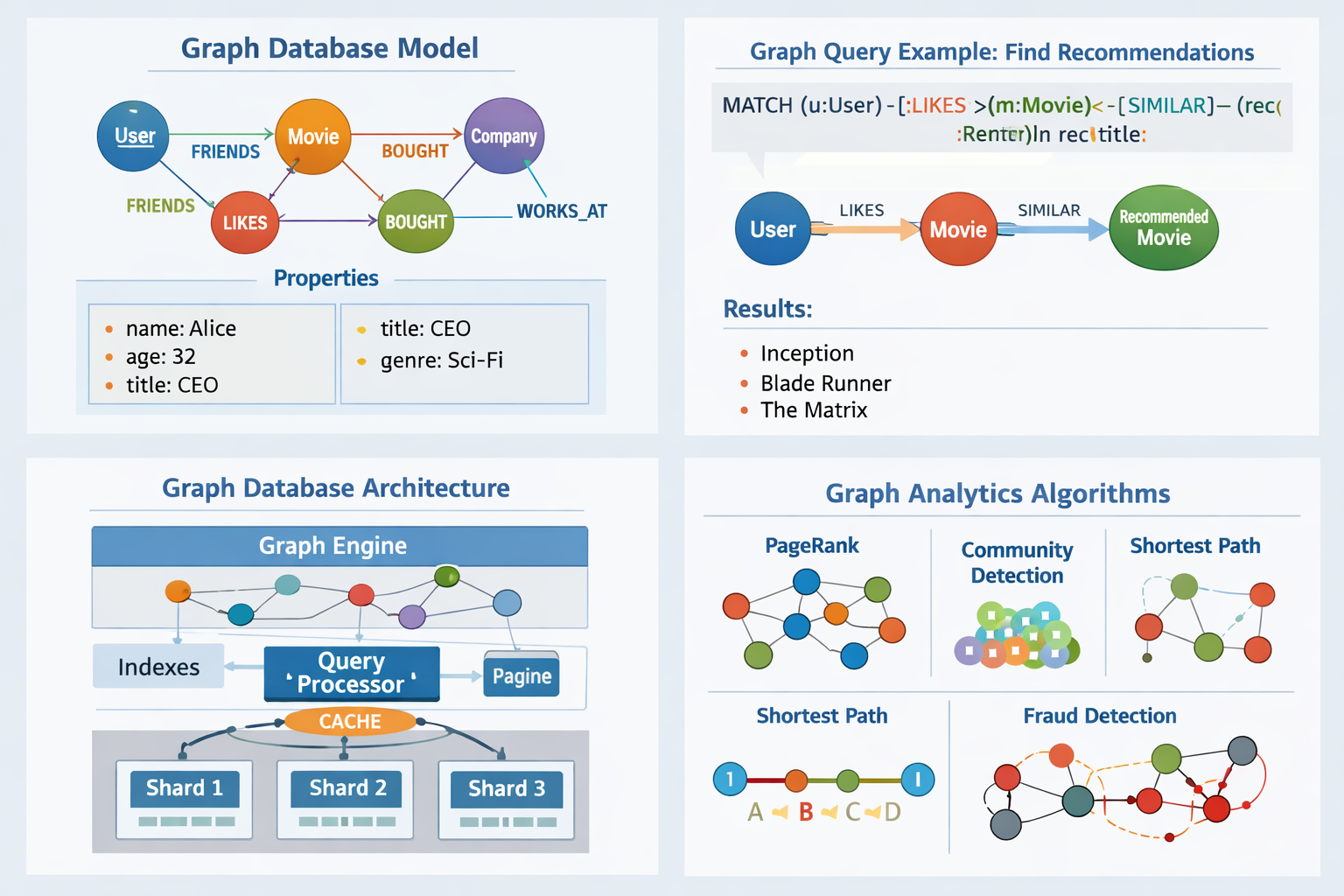

1. Definition and Core Concept

A graph database is a database system designed to store, manage, and query data as a graph structure. It emphasizes relationships between entities as first-class citizens, rather than treating relationships as secondary constructs (such as foreign keys).

• Nodes (Vertices) — entities or objects
• Edges (Relationships) — directed or undirected connections between nodes
• Properties — key–value attributes on nodes and/or edges

Graph databases are optimized for relationship traversal, pattern matching, and connected-data queries.

2. Graph Data Models

2.1 Property Graph Model

• Nodes and edges both support arbitrary properties
• Edges have direction and type
• Schema-optional (schema-on-read)

Common usage: social networks, fraud detection, recommendations

2.2 RDF (Resource Description Framework) Model

• Data stored as triples: subject → predicate → object
• Strongly schema-driven using ontologies (RDFS, OWL)
• Designed for semantic reasoning and inference

Common usage: knowledge graphs, semantic web, linked data

2.3 Labeled Property Graph (LPG)

• Extension of property graph
• Multiple labels per node
• Used by most modern graph engines

3. Query Languages

3.1 Cypher

• Declarative, pattern-matching language
• ASCII-art style graph patterns
• Optimized for readability and traversal queries

3.2 Gremlin

• Imperative, traversal-based language
• Part of Apache TinkerPop
• Supports OLTP and OLAP traversals

3.3 SPARQL

• Query language for RDF graphs
• Supports reasoning and inference queries
• Designed for semantic consistency

3.4 Native / Proprietary Languages

• Custom optimizations for performance
• Often support graph analytics primitives

4. Storage and Architecture

4.1 Native Graph Storage

• Adjacency lists stored on disk
• Pointer-based traversal
• Constant-time edge traversal

4.2 Distributed Graph Storage

• Graphs partitioned across nodes
• Vertex-cut or edge-cut strategies
• Trade-offs between locality and scalability

4.3 In-Memory Graph Engines

• Entire graph stored in RAM
• Microsecond-level traversals
• Used for real-time decision systems

5. Indexing Strategies

• Node property indexes — fast node lookup
• Composite indexes — multi-property filtering
• Relationship-type indexes — traversal pruning
• Full-text indexes — graph + text search

Indexes accelerate entry points, while traversals dominate query execution time.

6. Query Execution and Optimization

6.1 Traversal-Based Execution

• Queries executed as step-by-step graph walks
• Highly efficient for deep relationship queries

6.2 Cost-Based Optimization

• Cardinality estimation
• Traversal ordering
• Early pruning of paths

6.3 Path Explosion Control

• Depth limits
• Uniqueness constraints
• Cycle detection

7. Transactions and Consistency

• ACID transactions for OLTP workloads
• Fine-grained locking on nodes and edges
• Eventual consistency in large distributed clusters

Most production graph databases support full transactional guarantees.

8. Graph Analytics

8.1 Centrality Algorithms

• PageRank
• Betweenness centrality
• Closeness centrality

8.2 Community Detection

• Louvain
• Label propagation
• Connected components

8.3 Similarity and Path Algorithms

• Shortest path
• K-nearest neighbors
• Node similarity metrics

9. Common Use Cases

9.1 Recommendation Systems

• User–item relationships
• Real-time personalization

9.2 Fraud Detection

• Ring detection
• Multi-hop transaction analysis

9.3 Knowledge Graphs

• Entity resolution
• Semantic inference

9.4 Network and IT Operations

• Dependency mapping
• Impact analysis

9.5 Identity and Access Management

• Role hierarchies
• Permission propagation

10. Integration with Modern Data Platforms

• Streaming ingestion (Kafka, Kinesis)
• Graph + machine learning pipelines
• Hybrid architectures with relational and data lake systems

11. Strengths and Limitations

Strengths

• Extremely fast relationship traversal
• Natural modeling of connected data
• Flexible schema

Limitations

• Not ideal for large aggregations
• Sharding complexity
• Less efficient for simple tabular workloads

12. When to Use a Graph Database

• Data is highly connected
• Queries involve multi-hop relationships
• Business logic depends on graph structure
• Real-time traversal performance is required

Graph databases are most effective when relationships are the data, not just attributes.

Most Popular Graph Databases

Widely Adopted (Enterprise & Production)

• Neo4j — Property graph model; Cypher query language
• Amazon Neptune — Fully managed service; supports Gremlin, SPARQL, and openCypher
• TigerGraph — High-performance parallel graph analytics; GSQL
• ArangoDB — Multi-model database combining graph, document, and key-value; AQL

Open-Source / Infrastructure-Centric

• JanusGraph — Distributed graph database running on Cassandra, HBase, or ScyllaDB
• Dgraph — Native distributed graph engine with GraphQL+- query language
• OrientDB — Multi-model graph and document database with SQL-like queries

In-Memory / Real-Time Graph Engines

• RedisGraph — In-memory graph database optimized for low-latency traversal

RDF / Semantic Graph Databases

• AllegroGraph — RDF triple store; SPARQL querying; semantic reasoning and knowledge graphs

Cloud-Native Graph Offerings

• Azure Cosmos DB (Gremlin API) — Managed property graph service
• DataStax Enterprise Graph — Graph layer built on Apache Cassandra infrastructure

These platforms represent the most commonly used graph databases across enterprise systems, open-source ecosystems, real-time applications, semantic technologies, and cloud-native architectures.
